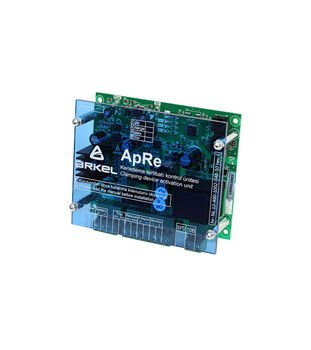

APRE Regulator Control Board
The APRE Regulator is an elevator spare part from Arkel, listed in our CONTROL PANEL PARTS > Control Boards Auxiliary Cards category. Elevator Market supplies it for elevator maintenance and modernization work.
APRE Regulator specifications
| Brand | Arkel |
|---|---|
| Category | CONTROL PANEL PARTS > Control Boards Auxiliary Cards |
| Governor locking coil voltage | 12 V DC or 24 V DC |
| Maximum coil current | 6 A |
| Safety circuit input | 190–230 V AC |
| Battery capacity | 1.2 Ah |
| Battery supply | 12 V DC or 24 V DC |
| Dimensions | 120 × 100 × 46 mm |
| Weight without enclosure | 300 g |
| Weight with enclosure | 330 g |
| Stock code | 9ARKEL-1001825 |
About the APRE Regulator
General Features
Speed Regulator Locking Coil Voltage: 12VDC or 24 VDC. Supply and battery connection is sufficient according to the coil voltage.
Normal Supply: For 12VDC Coil:11-14 VDC
For 24 VDC Coil: 20-27 VDC
Internal Battery Charge: With Direct Current Source
Average Power Consumption: When the coil is unpowered and the batterys is full: <1W When the coil is unpowered and the battery is full: <10W
Maximum Coil Current: 6A
Battery Supply: For 12VDC Coil:12 VDC/1.2 Ah For 24 VDC Coil:24 VDC/1.2 Ah
Security Circut Entry: 190-230 VAC
Compliance to Standards. EN81-1 + A3
FUNCTIONS
Can be used with 12VDC or 24VDC (up to 6A) coil speed governors.
Continue to work even if the mains network is disconnected by battery addition. The battery is charged by the Apre card.
In case of emergency, the rescue button can be connected so that the speed regulator can be released remotely.
The test button can be connected to test the speed governor remotely.
Suitable for use on fire lift doors (High speed signal input can be detected.)
There is an additional locking system on the speed regulators according to EN 81-1 + A3 Standard. When this system is de-energized, the speed regulator is kept in the locked position.At this time, if the cabin moves unintentionally in the up or down direction, the security guard (parachute brake) enters the circuit and the cabin is stopped at the allowed distance.
The APRe card controls the bobbin of this locking system on the speed governor.
ADRive controls the operation of the APRe card and the locking system. In the event of an error on the Apre card or the locking system, ADRive permanently blocks the lift. This blocked state does not improve even when the power is swithched off. A Competent person must intervene in order for the elevator to be able to operate again.
