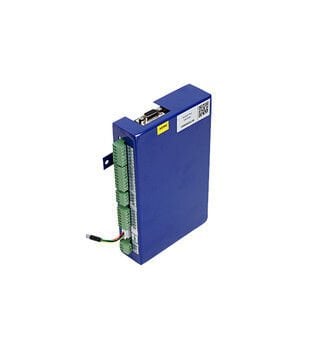

ARKEL ENCABIT Synchronous Encoder Card for ADRIVE
0 Point - 0 Comment
The Arkel ENCABIT is a synchronous encoder card for Arkel ADRIVE elevator drives. It simulates absolute encoder outputs through a 15-pin D-SUB female socket and adds 5 digital inputs and 2 transistor outputs to the drive.
Arkel ENCABIT technical specifications
| Brand | Arkel |
|---|---|
| Model | ENCABIT |
| Type | Synchronous encoder card |
| Encoder output | Absolute encoder simulation |
| Encoder connector | 15-pin D-SUB female socket |
| Digital inputs | 5 channels |
| Transistor outputs | 2 channels |
| Used with | Arkel ADRIVE elevator drives |
| Stock code | 9ARKEL-1001506 |
Additional product information
General Features
Encoder Connection: Absolute encoder simulation outputs with 15-pin D-SUB female socket with terminals
Output: 2 Transsistor Outputs
İnput: 5 Digital Inputs
Arkel ENCABIT is supplied by Elevator Market for elevator control panel and inverter retrofit work. Check the encoder type and drive model before ordering, and contact us if you need help matching the Arkel ENCABIT to your installation. Every Arkel ENCABIT is a spare part for Arkel ADRIVE installations, and the Arkel ENCABIT is not a stand-alone drive.
