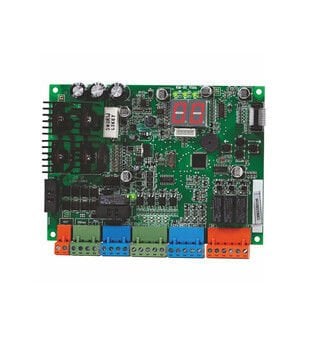

ARKEL KM-20 DC Door Control Card
0 Point - 0 Comment
The ARKEL KM-20 DC Door is an elevator spare part from Arkel, listed in our DOORS > Door Controller Cards category. Elevator Market supplies it for elevator maintenance and modernization work.
ARKEL KM-20 DC Door specifications
| Brand | Arkel |
|---|---|
| Category | DOORS > Door Controller Cards |
| Dimensions (W x L x H) | 116 x 160 mm x 50 mm |
| Motor type | 24 V geared DC motor |
| Max. output power | 200 W (8 A) |
| Door width / speed | 50 to 300 cm; max. 50 cm/s |
| Encoder | 2-channel incremental, 5 VDC, 100 to 2048 pulses |
| Battery supply | 2 x 12 V / 1.2 Ah, 5 A fuse |
| Alternative supply | 24 VDC external |
| Relay outputs | 3 A at 250 VAC or 30 VDC |
| Language options | Turkish, English, Greek |
| Stock code | 9ARKEL-1001272 |
About the ARKEL KM-20 DC Door
Input Supply Voltage : 20VAC±%10
Supply Protection : Fuse Protected (8A)
Standard Interface : 2 7-Segment Displays 4 Buttons
Maximum Power Consumption : 10W (Control Circuit) + Motor Power
Need help choosing?
Check the ARKEL KM-20 DC Door against the model code printed on your existing part before ordering. Send us your elevator details and we will confirm that the ARKEL KM-20 DC Door fits your installation. Quote stock code 9ARKEL-1001272 when you ask about the ARKEL KM-20 DC Door. Elevator Market supports you with technical questions about the ARKEL KM-20 DC Door.
