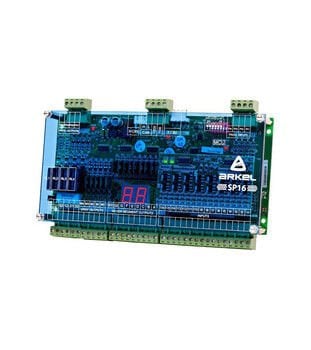

ARKEL SP16 ARL500 Serial-Parallel Conversion Card
0 Point - 0 Comment
The Arkel SP16 is a serial-parallel conversion card for the Arkel ARL500 elevator control board. It supports up to 16 stops in single-collective and up to 9 stops in full-collective operation, with call, 7-segment and Gray code outputs.
Arkel SP16 technical specifications
| Brand | Arkel |
|---|---|
| Model | SP16 |
| Used with | Arkel ARL500 control board |
| Input supply voltage | 24 V DC |
| Maximum power consumption with inactive outputs | 1 W |
| Maximum single-collective stops | 16 stops |
| Maximum full-collective stops | 9 stops |
| Call outputs | 200 mA at 24 V maximum |
| 7-segment outputs | 400 mA at 24 V maximum (9 channels) |
| Gray code outputs | 200 mA at 24 V maximum (5 channels) |
| Call inputs | 10 mA at 24 V maximum |
| Predefined relay outputs | 4 relays |
| Dimensions | 205 x 100 x 50 mm |
| Stock code | 9ARKEL-1002181 |
Arkel SP16 cards are supplied by Elevator Market for ARL500 based control panels. Check the number of stops and the output type your system needs before ordering, and contact us if you need help with the Arkel SP16. The Arkel SP16 converts serial calls for parallel boards, and the Arkel SP16 works together with the ARL500. Send us your ARL500 setup and we will help you check the Arkel SP16.
