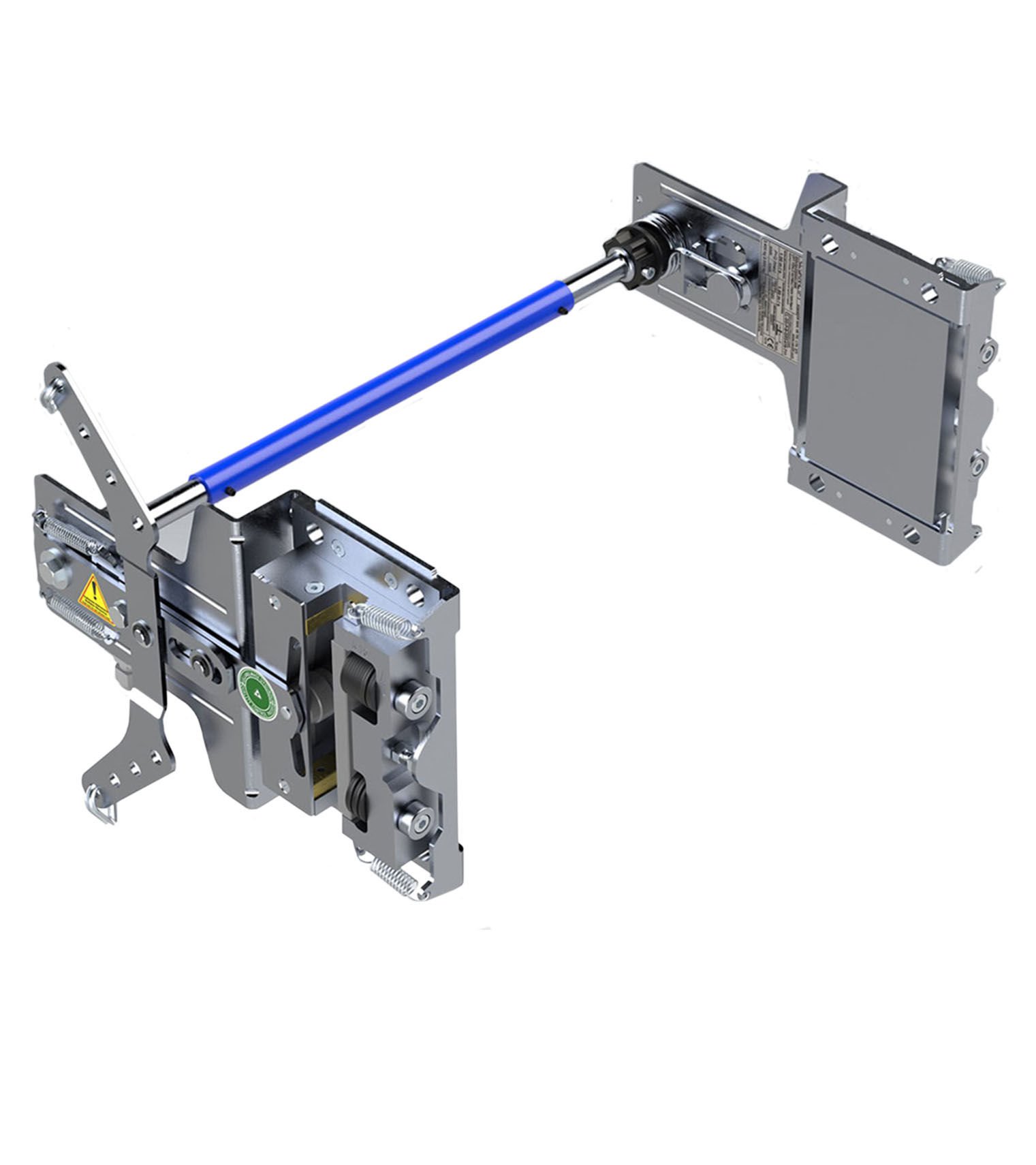

CanLift T11-T12 Bi and Uni Directional Progressive Safety Gear
0 Point - 0 Comment
The CanLift T11-T12 Bi is an elevator spare part from Canlift, listed in our Safety Gears category. Elevator Market supplies it for elevator maintenance and modernization work.
CanLift T11-T12 Bi specifications
| Product name | CanLift T11-T12 Bi and Uni Directional Progressive Safety Gear |
|---|---|
| Brand | Canlift |
| Category | Safety Gears |
| Maximum family rated speed | 2.5 m/s |
| Available guide rail thicknesses | 9 / 10 / 14 / 16 mm |
| Synchronization tube nominal size | 3/4 in |
| Synchronization pipe outside diameter | 26.7 mm |
| Synchronization pipe wall thickness | 2.9 mm |
| T11 mounting configuration | Support plate with center lever |
| T12 mounting configuration | Support plate with eccentric lever |
| Stock code | 9CANLIFT/T11-T12_71899 |
About the CanLift T11-T12 Bi
• Sync steel tubes : 3/4” Gas Pipes
• Max. Speed : 2,5 m/s
• Max P+Q : 4150 kg
• Guide rail thickness : 9-10-14-16 mm
• Max. Speed : 2,5 m/s
• Max P+Q : 4150 kg
• Guide rail thickness : 9-10-14-16 mm
Need help choosing?
Check the CanLift T11-T12 Bi against the model code printed on your existing part before ordering. Send us your elevator details and we will confirm that the CanLift T11-T12 Bi fits your installation. Quote stock code 9CANLIFT/T11-T12_71899 when you ask about the CanLift T11-T12 Bi. Elevator Market supports you with technical questions about the CanLift T11-T12 Bi.
