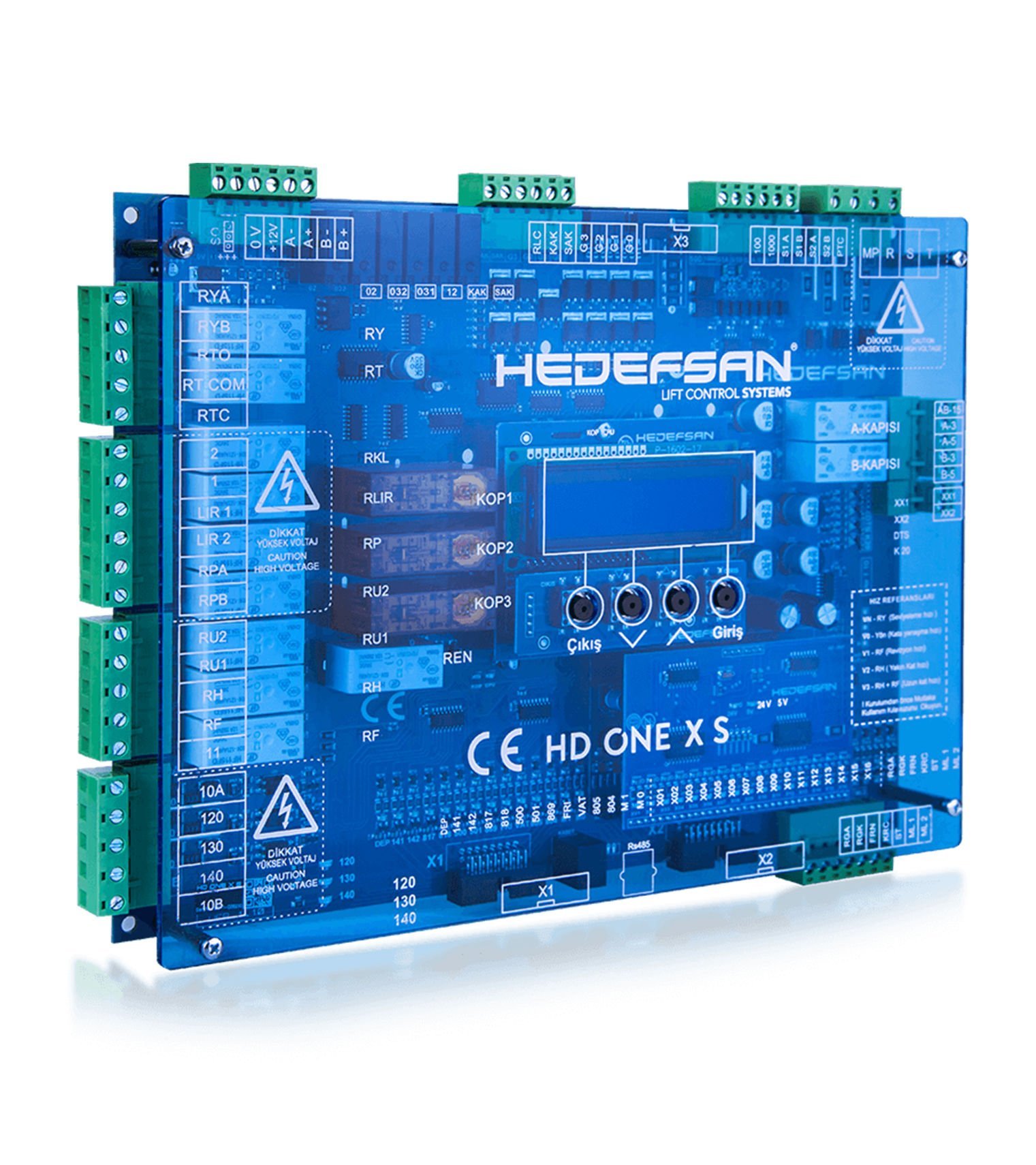

Hedefsan HD ONE X S Control Board for 16 Stops / Comp. to A3
0 Point - 0 Comment
The Hedefsan HD ONE is an elevator spare part from Hedefsan, listed in our Control Boards category. Elevator Market supplies it for elevator maintenance and modernization work.
Hedefsan HD ONE specifications
| Product name | Hedefsan HD ONE X S Control Board for 16 Stops / Comp. to A3 |
|---|---|
| Brand | Hedefsan |
| Category | Control Boards |
| Maximum lift speed | 3 m/s |
| Fault memory capacity | 20 records |
| Position sensing | Shaft copying with encoder |
| Door bridging circuit | Built-in |
| Programming protection | Password and PUK code |
| Stock code | 9HEDEFSAN/HD-K021301 |
About the Hedefsan HD ONE
• Shaft copying via encoder
• Internal bridging for early door opening
• Door open leveling
• Floor adjustment from inside the cabin
• Support for speeds up to 3 m/s
• Adjacent floor output
• Operation with up to 4 groups
• Call transfer in group operation
• 16 standard stops, expandable to 32
• Call lights and buttons can be connected to the system with just one cable
• Password-protected programming, PUK code protection against unauthorized use
• The last 20 errors can be viewed on the LCD screen with floor information
• In standby mode, the LCD screen displays the duration (days, hours) the elevator has been in operation since the last maintenance
• Adjustable maintenance interval with an alert displayed on the LCD when the maintenance period expires
• Simple and error-free installation with the internal terminal board, saving time and control panel terminals
• Overload function
• Short-circuit protected, adjustable display outputs for each floor
• Display outputs can be converted to gray code or binary output
• SA relay contact outputs for direction arrows, out-of-service signal, and busy signal; shared signal input for these outputs
• Adjustable parking floor and parking time
• Bistable switch input for position information
• 4-channel encoder input for position information
• Option to move the cabin to the first stop when power is restored
Need help choosing?
Check the Hedefsan HD ONE against the model code printed on your existing part before ordering. Send us your elevator details and we will confirm that the Hedefsan HD ONE fits your installation. Quote stock code 9HEDEFSAN/HD-K021301 when you ask about the Hedefsan HD ONE. Elevator Market supports you with technical questions about the Hedefsan HD ONE.
