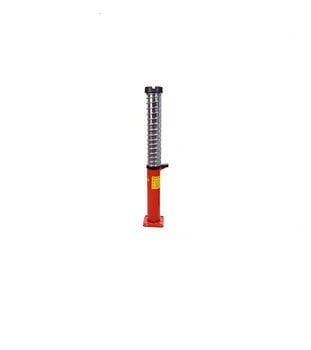

High Speed Hydraulic Buffer (2.5 m/sec) HT25-114
0 Point - 0 Comment
High Speed Hydraulic Buffer (2.5 m/s) HT25-114
- It complies with TSE EN 81-50, EAC standards.
- Provides easy assembly
- Provides easy oil level control
- safety control switch
- Provides ease of maintenance
| HT25-114 | ||||||
|---|---|---|---|---|---|---|
| V | V1 | H | A | STROKE | D&C | Capacity |
| 1 m/s | 1.15 m/s | 1150mm | 750mm | 422mm | 140mm | 500…3700 kg |
| 1.2 m/s | 1.38 m/s | 1150mm | 750mm | 422mm | 140mm | 500…3500 kg |
| 1.6 m/s | 1.84 m/s | 1150mm | 750mm | 422mm | 140mm | 500…3250 kg |
| 2m/s | 2.3 m/s | 1150mm | 750mm | 422mm | 140mm | 500…3000 kg |
| 2.5 m/s | 2.88 m/s | 1150mm | 750mm | 422mm | 140mm | 500…2500 kg |
| BOX QTY | BOX+PRODUCT WEIGHT | LENGTH (mm) | EN (mm) | HEIGHT (mm) |
| one | 23,000 | 1176 | 197 | 198 |
