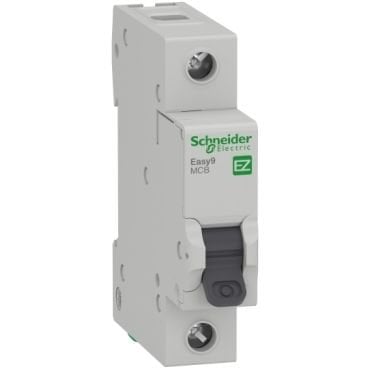

Schneider Easy9 MCB 1P 6A 4.5 kA Type C Miniature Circuit Breaker
The Schneider Easy9 MCB 1P is an elevator spare part from Schneider. Elevator Market supplies it for elevator maintenance and modernization work.
Schneider Easy9 MCB 1P specifications
| Product name | Schneider Easy9 MCB 1P 6A 4.5 kA Type C Miniature Circuit Breaker |
|---|---|
| Brand | Schneider |
| Rated operational voltage | 230 V AC |
| Rated frequency | 50 Hz |
| Mechanical endurance | 10000 cycles |
| Stock code | 9SCHDR/EZ9F34106 |
About the Schneider Easy9 MCB 1P
The nominal short-circuit breaking capacity can reach up to 4500A at 230VAC according to the IEC 60898-1 standard and up to 25kA at 24...48VDC according to the EN/IEC 60947-2 standard. It is compliant with the IEC 60898-1 standard.
This product offers short-circuit protection and cable protection against overloads. There is a tripping indicator on the front panel based on the position of the handle (O-I notch). This product is aimed at residential and small commercial buildings.
It has an electrical endurance of up to 4000 cycles and a mechanical endurance of up to 10000 cycles. The working voltage (Ue) is 230VAC, and the rated insulation voltage (Ui) is 500VAC. The nominal impulse withstand voltage (Uimp) is 4kV. The operating frequency is 50Hz, and it can be mounted on a DIN rail for modular installation.
Need help choosing?
Check the Schneider Easy9 MCB 1P against the model code printed on your existing part before ordering. Send us your elevator details and we will confirm that the Schneider Easy9 MCB 1P fits your installation. Quote stock code 9SCHDR/EZ9F34106 when you ask about the Schneider Easy9 MCB 1P. Elevator Market supports you with technical questions about the Schneider Easy9 MCB 1P.
