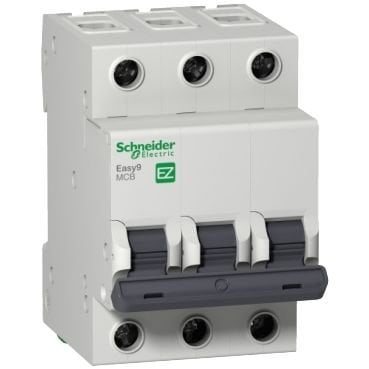

Schneider Easy9 MCB 3P 25A 4.5 kA Type C Miniature Circuit Breaker
The Schneider Easy9 MCB 3P is an elevator spare part from Schneider. Elevator Market supplies it for elevator maintenance and modernization work.
Schneider Easy9 MCB 3P specifications
| Product name | Schneider Easy9 MCB 3P 25A 4.5 kA Type C Miniature Circuit Breaker |
|---|---|
| Brand | Schneider |
| Rated operational voltage | 400 V |
| Stock code | 9SCHDR/EZ9F34325 |
About the Schneider Easy9 MCB 3P
This Easy9 product is a low-voltage miniature circuit breaker (MCB). It is a 3-pole circuit breaker with a nominal current of 25A and Type C tripping characteristics.
The nominal short-circuit breaking capacity can reach up to 4500A at 230VAC in accordance with the IEC 60898-1 standard, and up to 25kA at 24...48VDC in accordance with the EN/IEC 60947-2 standard. It is compliant with the IEC 60898-1 standard.
This product provides protection against short circuits and overloads. There is a tripping indicator on the front panel based on the position of the handle (O-I notch). This product is specifically designed for residential and small commercial buildings. It has an electrical endurance of up to 4000 cycles and a mechanical endurance of up to 10000 cycles.
The user working voltage is 400VAC. The instantaneous insulation voltage (Uı) is 500VAC. The nominal impulse withstand voltage (Uimp) is 4kV. The operating frequency is 50Hz. It can be mounted on a DIN rail for modular installation, with a width of 9 mm across 6 modules.
Need help choosing?
Check the Schneider Easy9 MCB 3P against the model code printed on your existing part before ordering. Send us your elevator details and we will confirm that the Schneider Easy9 MCB 3P fits your installation. Quote stock code 9SCHDR/EZ9F34325 when you ask about the Schneider Easy9 MCB 3P. Elevator Market supports you with technical questions about the Schneider Easy9 MCB 3P.
