ADrive 4B055400V 5,5KW - 14A VVVF Elevator Drive
0 Point - 0 Comment

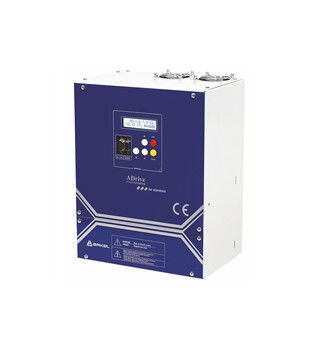

The Arkel ADrive 4B055400V is a 5.5 kW, 14 A three-phase VVVF elevator drive in the Arkel ADrive range. It is controlled over RS-485 serial communication with the ARL-500 control card and keeps a log of the last 256 faults.
ADrive 4B055400V technical specifications
| Brand | Arkel |
|---|---|
| Model | ADrive 4B055400V |
| Rated power | 5.5 kW |
| Rated current | 14 A |
| Maximum short-time output current | 28 A (<6 s) |
| Three-phase supply voltage range | 300-420 V AC |
| Power circuit battery supply | 60-120 V |
| Control circuit | External 24 V DC supply |
| Serial communication | RS-485, with ARL-500 control card |
| Fault memory | Last 256 faults |
| Menu languages | Turkish, English, French, Hungarian |
| Overspeed warning | Above 0.63 m/s |
| Stock code | 9ARKEL-1001479 |
Additional product information
ADrive 4B055400V 5,5kw - 14A VVVF Motor Driver Price Power Circuit: 60-120V voltage battery pack can be fed by a 220VAC output UPS of suitable power Control Circuit: Staying alive with external 24Vdc supply Overspeed Warning: At speeds greater than 0.63 m/s Serial Communication: Serial communication with ARL-500 control card via RS-485 port Error Log: Possibility of retrospective fault tracking by keeping the last 256 faults in memory Menu Languages: Turkish, English, French, Hungarian language options Compliance with Standards: aEMC tested certifiedThe Arkel ADrive 4B055400V VVVF elevator drive is available from Elevator Market. Confirm motor power and supply voltage before ordering the ADrive 4B055400V, and contact us if you need help choosing the right Arkel ADrive model. The ADrive 4B055400V is rated for 5.5 kW motors, so check that the ADrive 4B055400V matches your machine data.
