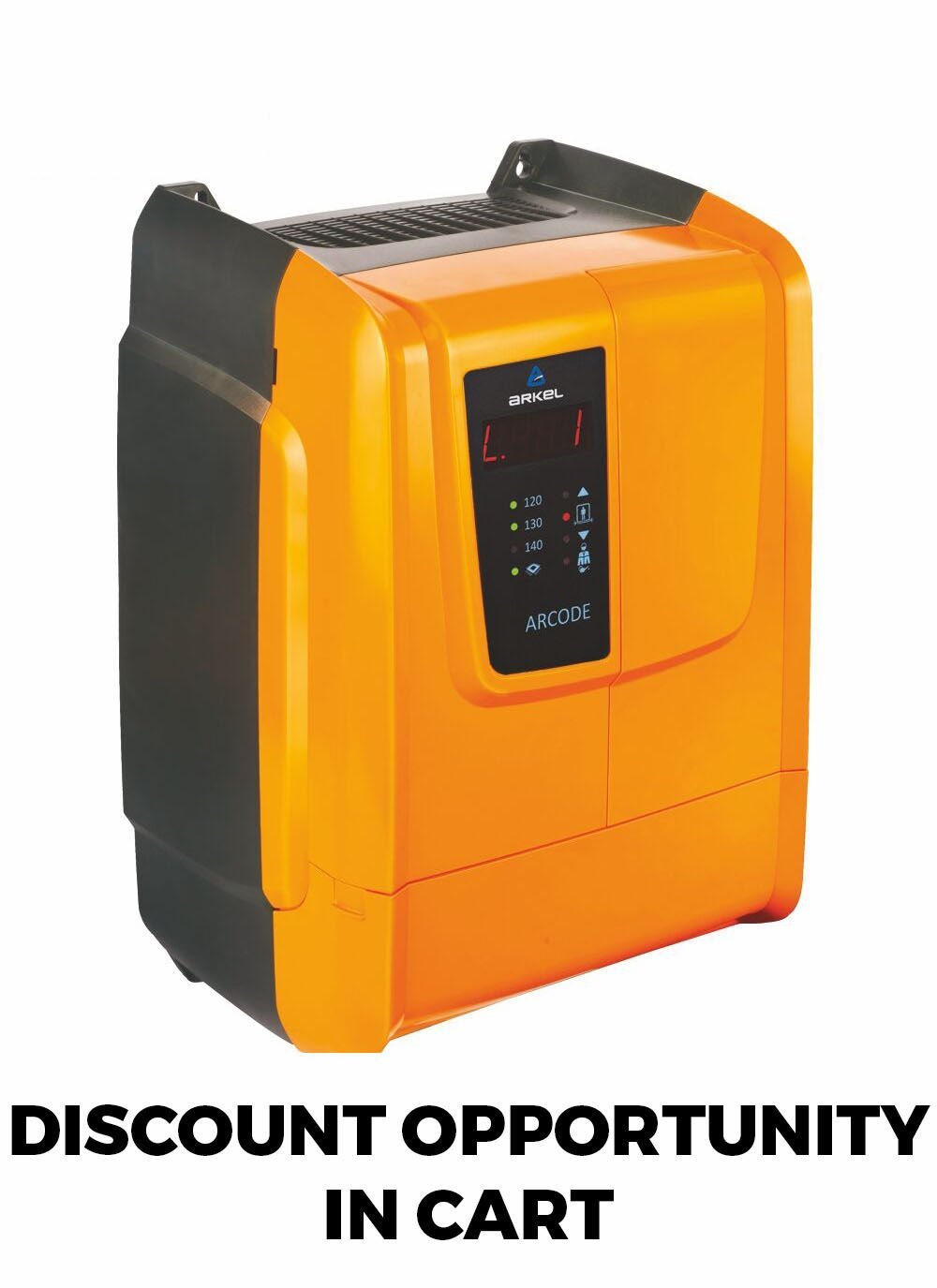

ARKEL ARCODE 4B14A 400V 14A Integrated Elevator Controller
The ARKEL ARCODE 4B14A 400V is an elevator spare part from Arkel, listed in our CONTROL PANEL PARTS > Inverters category. Elevator Market supplies it for elevator maintenance and modernization work.
ARKEL ARCODE 4B14A 400V specifications
| Brand | Arkel |
|---|---|
| Category | CONTROL PANEL PARTS > Inverters |
| Maximum elevator speed | 4 m/s |
| Maximum stops | 64 stops |
| Maximum group size | 8 elevators |
| Door control | 2 independent doors |
| Control communication | CANbus |
| Stock code | 9ARKEL-1002347 |
About the ARKEL ARCODE 4B14A 400V
General Features
Motor Control : Synchronic (gearless) Machine, Asynchronic (geared) Machine
Elevator Speed (Maximum) : 4m/s
Number of stops: 64 Stops
Automatic Bring to Floor: 1-Faz 220 VAC UPS Accumulator Group Connection
Drive Type: With or Without Engine Room (MRL)
Group Work Feature: Up to 8 elevators
Serial Communication: With Ready Installation CANBus Serial Communication(Standart)
Encoder: Incremental Encoder (5V TTL or 10-30V HTL), Absolute Encoder (EnDat,SSI,SinCos or BISS)
Functions
Cabin position information with incremental or absolute value motor encoders
Independent door controls for each stop with 2 door supports
Motor recognition / Pit Recognition / Automatic settings with capability of learning control gains
Excellent travel comfort thanks to direct landing.
Internal EMI filter
Internal DC shock
Internal relays for transferring between system and emergency feeding
Pre-opening of doors and fast take off (with optional door bridging module)
Digital pit learning / short floor trips without any additional setting and hardware
High stopping accuracy
48 -230VAC safety circuit voltage
Energy saving mode
Programmable entrances and exits
Lift test menu
