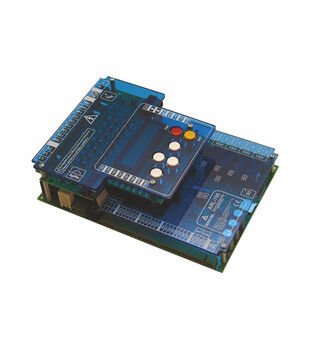

ARKEL ARL 700 Elevator Control Board
0 Point - 0 Comment
The ARKEL ARL 700 is an elevator spare part from Arkel, listed in our CONTROL PANEL PARTS > Control Boards category. Elevator Market supplies it for elevator maintenance and modernization work.
ARKEL ARL 700 specifications
| Brand | Arkel |
|---|---|
| Category | CONTROL PANEL PARTS > Control Boards |
| Maximum stops | 64 stops |
| Maximum elevator speed | 2.5 m/s |
| Maximum group size | 8 elevators |
| Programmable inputs | 20 channels |
| Programmable outputs | 8 channels |
| Fault memory | 100 records |
| Stock code | 9ARKEL-1003622 |
About the ARKEL ARL 700
ARL-700 Elevator Control Board - Maximum 64 Stops Number of Stops: 64 Stops Control Type: Single Button Collect Double Button Collect Drive Type: Hydraulic VVVF Group Controller: 8 Serial Communication: With floor and cabin Elevator Speed (Maximum): 2.5 m/s Cab Position Information: Magnetic Switches Encoder System Automatic Door Control: Single Door Double Door Door Bridging: Yes Indicator Outputs: 7 Segment Gray/Binary Code LCD Output Programmable Inputs/Outputs: 20 Inputs / 8 Outputs (4PR+4PT) Error Log: Up to 100 Errors Language Options: Turkish, English (Additional Language Option with Arem) Compliance with Standards: En 81/1-2/20+A3
Need help choosing?
Check the ARKEL ARL 700 against the model code printed on your existing part before ordering. Send us your elevator details and we will confirm that the ARKEL ARL 700 fits your installation. Quote stock code 9ARKEL-1003622 when you ask about the ARKEL ARL 700. Elevator Market supports you with technical questions about the ARKEL ARL 700.
