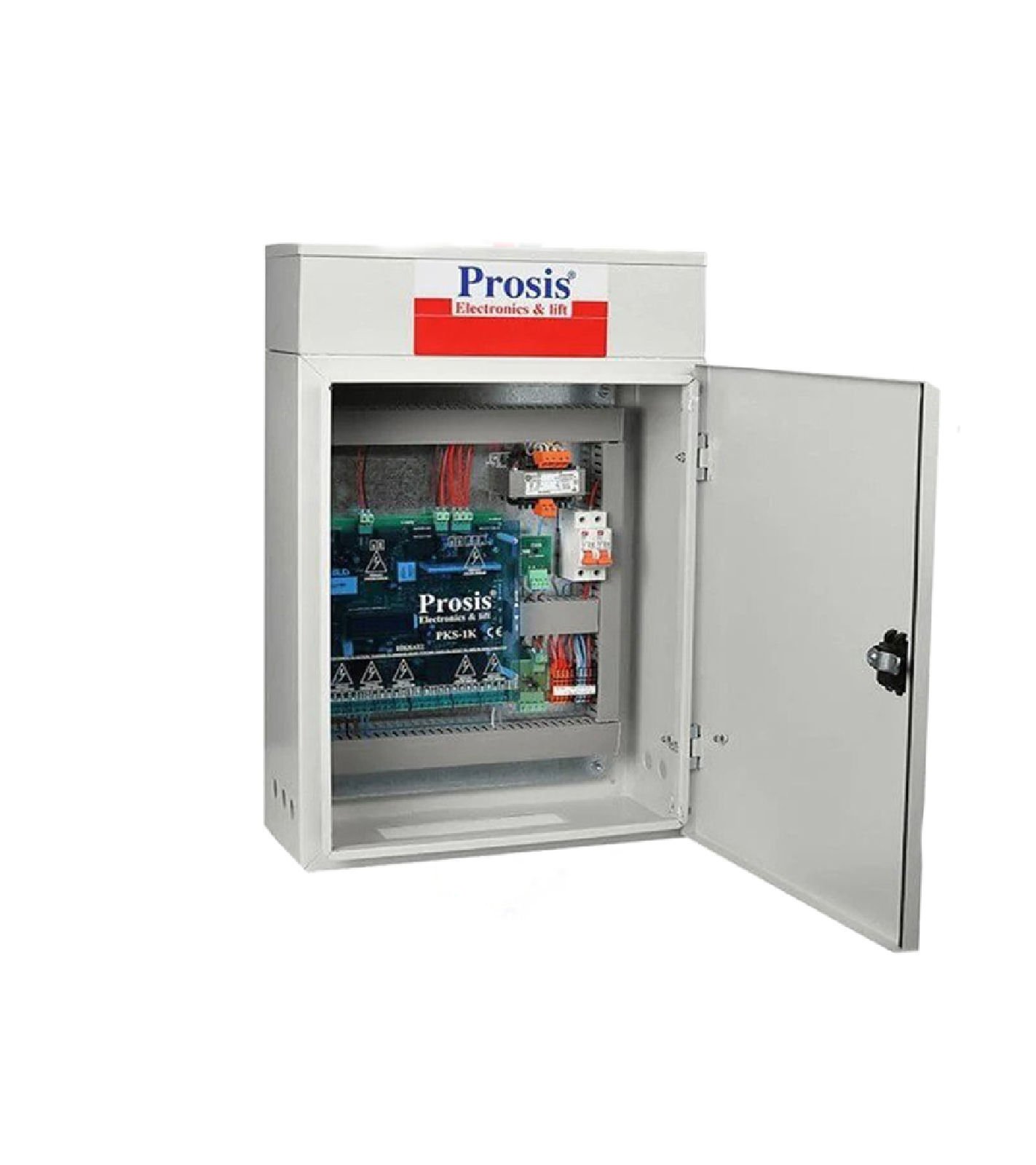

PKS-1K RESCUE PANEL (Complete Cabin)

•      Can work with all panels externally as PKS - 1K.

•      It does not require SAK Contactor.

•      It does not require KAK Contactor as it contains it within itself.

•      Generates 220 VAC for automatic door. It generates 220 VAC during recovery.

•      If the elevator is under revision, it displays "NO RECOVERY DURING REVISION" warning on the LCD screen and does not perform recovery.

•      Takes over the safety circuits during power outage, cuts off the electricity going to the panel's supply transformer, and rescues the elevator by controlling the safety circuits.

•      There is an option to select the position (open/closed) of the JF contactor.

•      The time elapsed until the Bi-stable (JF) contactor stops can be adjusted.

•      Maximum cruise time, movement time after JF cutting, time elapsed until reaching JF after lock cutting, and language selection can be made through the LCD screen on PKS - 1K.

•      Errors and operation process can be monitored on the LCD screen on PKS - 1K.

•      Recovery time can be adjusted.

•      Ensures the automatic door remains closed by continuously supplying power to the door and issuing a close command during recovery.

•      Provides energy from 4 or 5 dry batteries. It does not continuously charge the batteries. When the batteries are full, it stops charging and discharges and recharges the batteries within itself every month.

•      Extremely easy to adapt to the elevator panel.

•      Applicable to single-speed, two-speed, or speed-controlled panels.

•      Turkish and English language options are available in the menu.

•      In case of power outage, if the automatic door is closed on the elevator floor, it opens the automatic door to evacuate passengers.

•      Enables recovery by selecting the easiest direction of movement, thus preventing strain on the batteries.

•      Operates in open loop.

•      Lirpompa can operate without providing energy. There is a 220 VAC lirpomp output, and if available, the PW door can be controlled with this output.

·        Technical Specifications Box Weight: 24 kg Box Dimensions: 42x55x18 cm³ Number of Boxes: 1 piece
