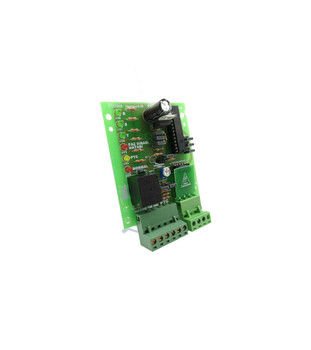

FKR-1 Phase Protection Card
The FKR-1 Phase Protection is an elevator spare part from Prosis, listed in our Control Boards Auxiliary Cards category. Elevator Market supplies it for elevator maintenance and modernization work.
FKR-1 Phase Protection details
| Product name | FKR-1 Phase Protection Card |
|---|---|
| Brand | Prosis |
| Category | Control Boards Auxiliary Cards |
| Stock code | 0FKR01-A |
About the FKR-1 Phase Protection
Phase control sensitivity on the FKR-1 Phase Protection Board can be finely adjusted between 10% and 50% using the trimpot. Additionally, thanks to the PTC inputs, effective motor warming control is provided for elevator and elevator space parts.
Technicial Specifications
Voltage sensitivity range can be adjusted between 10% - 50%
100 = 24 VDC
1000 =0 VDC
R,S,T = 380VAC
N = Neutral
PTC = Engine Thermostat Input
COM = Relay Contact Mid Terminal
NO = Relay Contact Normally Open End
Box Weight1,60 kg
Box Size50x9,8x9,8 cm³
Total box25
Need help choosing?
Check the FKR-1 Phase Protection against the model code printed on your existing part before ordering. Send us your elevator details and we will confirm that the FKR-1 Phase Protection fits your installation. Quote stock code 0FKR01-A when you ask about the FKR-1 Phase Protection. Elevator Market supports you with technical questions about the FKR-1 Phase Protection.
