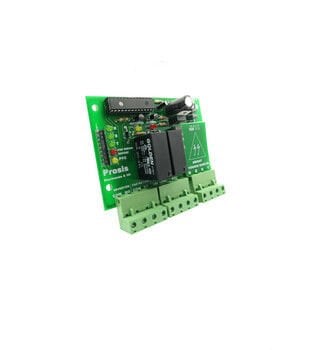

FKR-2 Phase Protection Card
The FKR-2 Phase Protection is an elevator spare part from Prosis, listed in our Control Boards Auxiliary Cards category. Elevator Market supplies it for elevator maintenance and modernization work.
FKR-2 Phase Protection details
| Product name | FKR-2 Phase Protection Card |
|---|---|
| Brand | Prosis |
| Category | Control Boards Auxiliary Cards |
| Stock code | 0FKR02-A |
About the FKR-2 Phase Protection
35A bridge diode board with input and output varistor protection.
Operation control is provided by the LED on it.
In case of any malfunction, the terminal connection and the diode can be removed and replaced.
* New Model
* Economic Series
* Internal Diode
Technicial Specifications
100 = 24 VDC
1000 =0 VDC
R,S,T = 380VAC
N = Nötür
PTC = Engine Thermostat Input
COM = Relay Contact Middle Terminal (For Phase Error)
NO = Relay Contact Normally Open (For Phase Failure)
COM = Relay Contact Mid Terminal (For Inverter)
NO = Relay Contact Normally Open (For Inverter)
Box Weight1,66 kg
Box Size50x9,8x9,8 cm³
Total box16
