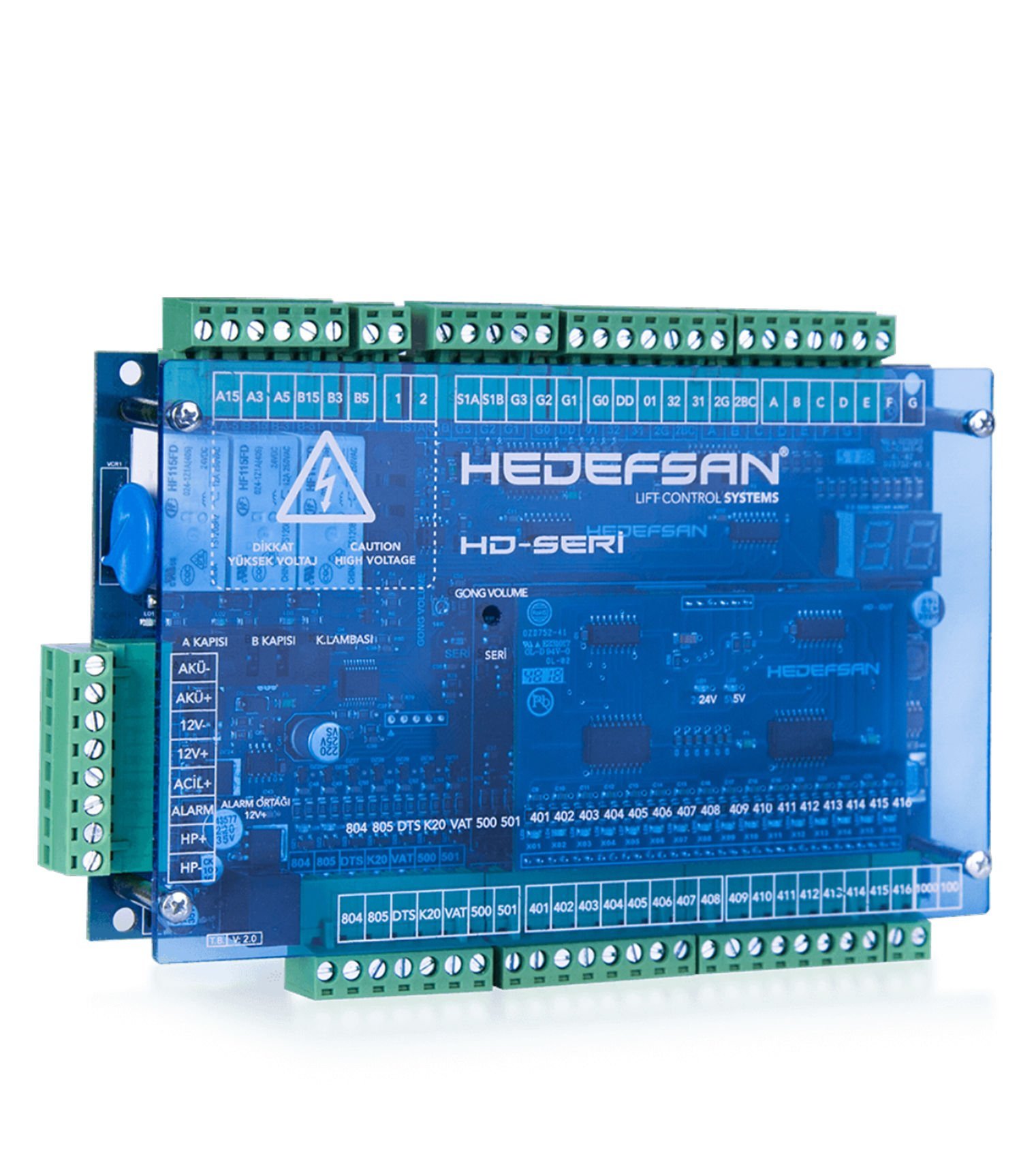

Hedefsan HD Seri Serial Communication Board for HD One X S, HD 200 X S
0 Point - 0 Comment
The Hedefsan HD Seri Serial is an elevator spare part from Hedefsan, listed in our Control Boards Auxiliary Cards category. Elevator Market supplies it for elevator maintenance and modernization work.
Hedefsan HD Seri Serial specifications
| Product name | Hedefsan HD Seri Serial Communication Board for HD One X S, HD 200 X S |
|---|---|
| Brand | Hedefsan |
| Category | Control Boards Auxiliary Cards |
| Communication protocol | CANbus |
| Maximum stops | 16 stops |
| Stock code | 9HEDEFSAN/HD-K021401 |
About the Hedefsan HD Seri Serial
• Cabin calls
• Display outputs
• Overload and full load inputs
• Gong signal
• Direction arrow outputs
• Cabin light output
• Automatic door opening and closing inputs
• Up and down movement button inputs during revision
• Binary/Gray-code outputs for LCD screens
• Provides minimum cable connection between the control panel and cabin
• Battery-friendly charging circuit
• Adjustable volume for alarm and gong signal
• Emergency lighting output
• +12V and -12V terminals
• Additional automatic door card inputs and output relays (for the second automatic door)
• Programmable inputs and outputs
Need help choosing?
Check the Hedefsan HD Seri Serial against the model code printed on your existing part before ordering. Send us your elevator details and we will confirm that the Hedefsan HD Seri Serial fits your installation. Quote stock code 9HEDEFSAN/HD-K021401 when you ask about the Hedefsan HD Seri Serial.
