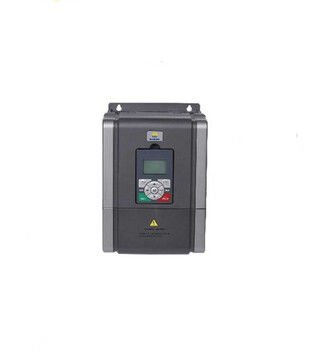

HPMONT - HD5L Inverter 15 KW - 32A Elevator Motor Drive (ABZ)

HPMONT - HD5L Inverter 15 KW - 32A Elevator Motor Driver Price

Based on the development of HD50 series high-performance vector-controlled AC drive, HD5L is dedicated to elevator industry products.

Input voltage

1 phase / phase 200-240 V

3 phase / phase 200-240 V

3 phase / phase 380 - 460 V

Fluctuation / fluctuation within ±10%,

Imbalance Rate / Unbalance rate 3%

Input frequency

50/60Hz ±5%

Output voltage / Output voltage

Input voltage / Input voltage

Output frequency / Output frequency

0 - 100.00Hz

Performance

Control mode V/f, SVC, VC

Maximum current / Maximum current

 150% of rated output current for 2 minutes, 180% of rated output current for 10 seconds / 150% of rated output current for 2 minutes, 180% of rated output current for 10 seconds

Operation command / Operation command

Keypad, Terminals, Communication / Panel, Terminals, Communication

Speed ​​adjustment / Speed ​​adjustment

Digital, Analog, Communication / Digital, Analog,

Communication

Speed ​​resolution / Speed ​​resolution

Digital tuning / Digital tuning: 0.01Hz

Analog tuning / Analog tuning: 0.1% × max-frequency

SVC

Speed ​​control / Speed ​​control accuracy: Â ± 0.5%

Speed ​​control range / Speed ​​control range: 1: 100 Torque

Control response / Torque control response: <200ms

Starting torque / Starting torque:

180% of rated torque / rated torque / 0.5Hz VC

Speed ​​control accuracy / Speed ​​control accuracy: Â ± 0.05%

  180% rated torque / 0.5 Hz

Speed ​​control range / Speed ​​control range: 1: 1000

Torque control response / Torque control response: <50ms

Starting torque / Starting torque: 200% of rated torque / rated torque / 0Hz

Input / Output

Analog power supply / Analog power supply

+10V, max current / max current 100mA

 -10V, max current / max current 10mA

Digital power supply / Digital power supply

+24V, max current / max current 200mA

Analog inputs / Analog inputs

AI1: Voltage / Voltage-10 - +10 V

AI2 - AI4: -10 - + 10V / 0 - 20mA (selectable voltage / current - selectable voltage / current)

Support AI4 differential mouthpiece / differential input

Analogue outputs

AO 1 - A O2: 0 - 10V / 0 - 20m A (selectable voltage / current / selectable voltage / current)

Digital inputs / Digital inputs

DI1 - DI12

Digital outputs / Digital outputs

DO1 - DO2

Relay outputs / Relay outputs

R1A / R1B / R1C

R2A / R2B / R2C - R4A / R4B / R4C

Ignition/Communication ratings: 250VAC/3A or 30VDC/1A4

Need help choosing?

Check the HPMONT - HD5L Inverter against the model code printed on your existing part before ordering. Send us your elevator details and we will confirm that the HPMONT - HD5L Inverter fits your installation. Quote stock code 1HPHD5L03 when you ask about the HPMONT - HD5L Inverter. Elevator Market supports you with technical questions about the HPMONT - HD5L Inverter.
