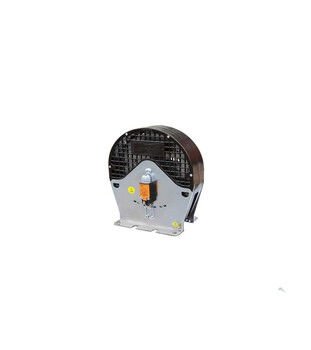

Moment 250 Double Speed Speed Regulator + Regulator Bottom Spring
The speed regulator is the elevator safety equipment that detects the speed when the elevator's travel speed exceeds 115% and activates the safety brake by locking itself.
- Provides speed control in two directions
- It works silently.
- It is used in elevators without machine room.
- It provides remote access.
- The test coil is available in 24 DC – 190 DC options.
- Remote access coil providing safety switch control 24 DC – 190 DC options are available.
- Conforms to TSE EN 81-50, EAC standards
| Data/Type | Moment 250 040 |
Moment 250 050 |
torque 250 063 |
torque 250 080 |
Moment 250 100 |
Moment 250 120 |
Moment 250 160 |
Moment 250 200 |
Moment 250 250 |
|---|---|---|---|---|---|---|---|---|---|
| Nominal velocity |
0.40 m/s | 00.50 m/s | 0.63 m/s | 0.80 m/s | 1.00 m/s | 1.20 m/s | 1.60m/s | 2.00 m/s | 2.50 m/s |
| BOX QTY | BOX+PRODUCT WEIGHT | LENGTH (mm) | EN (mm) | HEIGHT (mm) |
| one | 11,280 | 310 | 265 | 365 |
