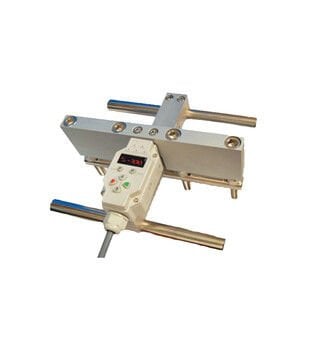

S 90 Rope Overload System
The S 90 Rope Overload is an elevator spare part from Sonar, listed in our SAFETY EQUIPMENTS > Overload Systems category. Elevator Market supplies it for elevator maintenance and modernization work.
S 90 Rope Overload specifications
| Product name | S 90 Rope Overload System |
|---|---|
| Brand | Sonar |
| Category | SAFETY EQUIPMENTS > Overload Systems |
| Supply voltage | 16–65 V AC/DC |
| Power consumption | 4 W |
| Alarm relays | 3 relays |
| Maximum switching voltage | 250 V AC |
| Maximum peak current | 5 A |
| Rated current | 3 A |
| Resistive load rating AC-1 | 800 VA |
| Inductive load rating AC-15 | 200 VA |
| Hold input voltage | 12–230 V AC/DC |
| Rope diameter | 4–16 mm |
| Measuring range | 300–2500 kg |
| Maximum load | 5000 kg |
| Dimensions | 158 × 230 × 115 mm |
| Cable set length | 3 m |
| Display | 4-digit LED |
| Configuration keys | 6 keys |
| Stock code | S90 |
About the S 90 Rope Overload
| Power Suply Voltage | AC/DC 16-65V |
| Power Rating | 4W |
| Alarm Relay | 3 |
| Max Switching Voltage | 250VAC |
| Max Peak Current | 5A |
| Rated Current | 3A |
| Rated Load ( Resistive ) in | AC1 800VA |
| Rated Load ( İntuctive ) | AC15 200VA |
| Analog Output | |
| Galvanically İsolated | O |
| Hold İnput | 12V-230V AC/DC |
| Rope Diameter | 4MM-16MM |
| Mesasuring Range | 300kg - 2500 kg |
| Maksimum Load | 5000 kg |
| Dimensions | 158mm, 230mm, 115mm |
| Lenght Of Cable Set | 3m |
- Overload weighing system with extremely attractive performance / cost ratio.
- Thansk to the integrated control unit, no additional cables are needed to connect the sensor and control unit.
- Controller configured with 6 keys and 4 digits Led display.
- Easy installation, only a few minutes are needed to install multi-rope sensors
- Suitable for steel rope with 4-16 mm diameter
- Meet The requirements of EN81
Need help choosing?
Check the S 90 Rope Overload against the model code printed on your existing part before ordering. Send us your elevator details and we will confirm that the S 90 Rope Overload fits your installation. Quote stock code S90 when you ask about the S 90 Rope Overload. Elevator Market supports you with technical questions about the S 90 Rope Overload.
