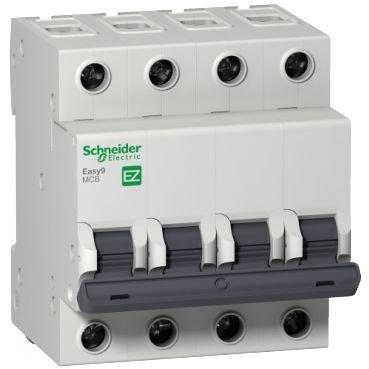

Schneider Easy9 MCB 4P 25A 4.5 kA Type C Miniature Circuit Breaker
The Schneider Easy9 MCB 4P is an elevator spare part from Schneider. Elevator Market supplies it for elevator maintenance and modernization work.
Schneider Easy9 MCB 4P specifications
| Product name | Schneider Easy9 MCB 4P 25A 4.5 kA Type C Miniature Circuit Breaker |
|---|---|
| Brand | Schneider |
| Rated operational voltage | 400 V AC |
| Rated frequency | 50 Hz |
| Magnetic tripping range | 5–10 × In |
| Stock code | 9SCHDR/EZ9F34425 |
About the Schneider Easy9 MCB 4P
This Easy9 product is a low-voltage miniature circuit breaker (MCB). It is a 4-pole circuit breaker with 25A nominal current and Type C tripping characteristics.
The nominal short-circuit breaking capacity can reach up to 4500A at 230VAC in accordance with the IEC 60898-1 standard, and up to 25kA at 24...48VDC in accordance with the EN/IEC 60947-2 standard. It is compliant with the IEC 60898-1 standard.
This product provides protection against short circuits and overloads. There is a tripping indicator on the front panel based on the position of the handle (O-I notch).
Need help choosing?
Check the Schneider Easy9 MCB 4P against the model code printed on your existing part before ordering. Send us your elevator details and we will confirm that the Schneider Easy9 MCB 4P fits your installation.
